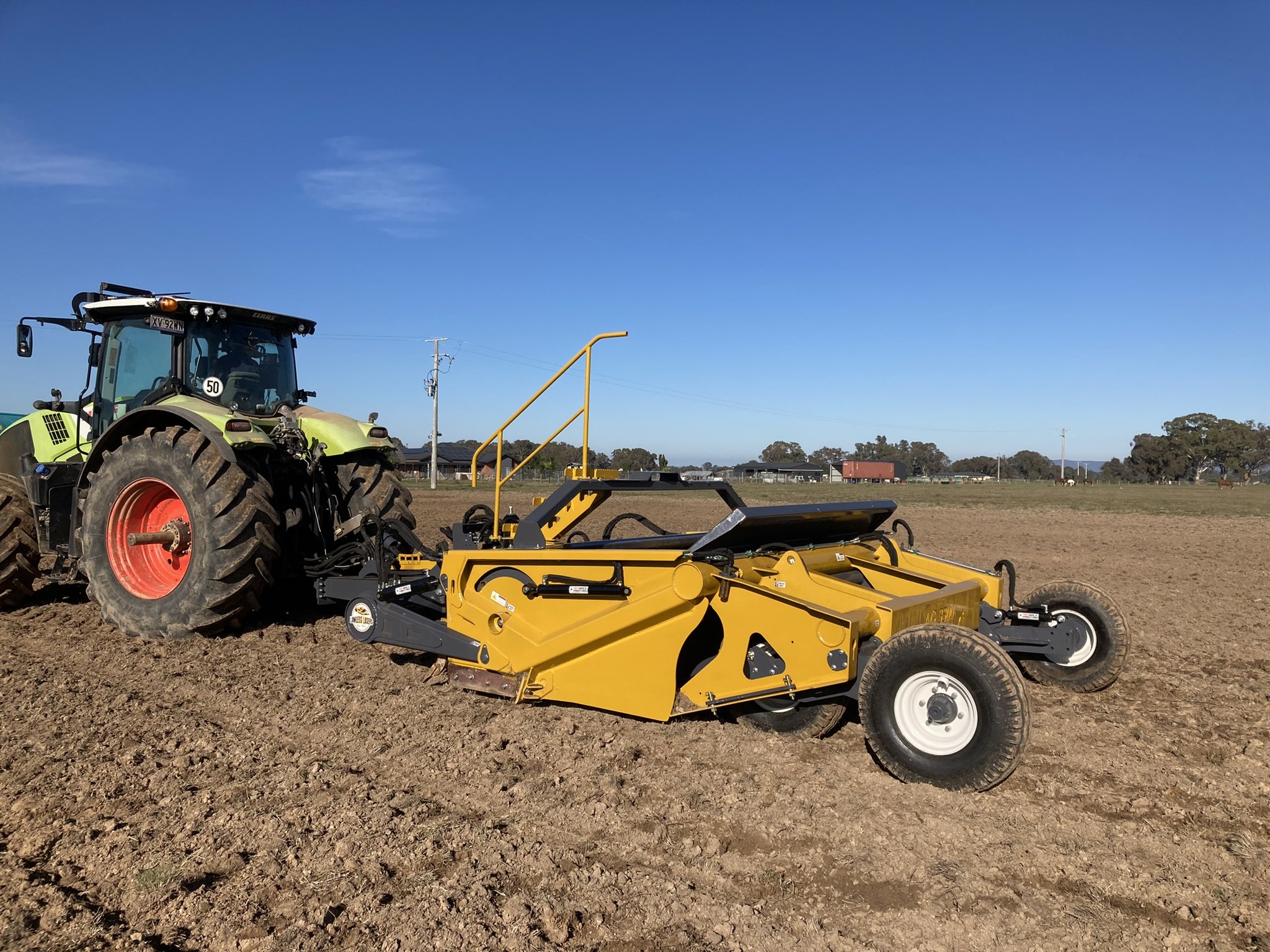

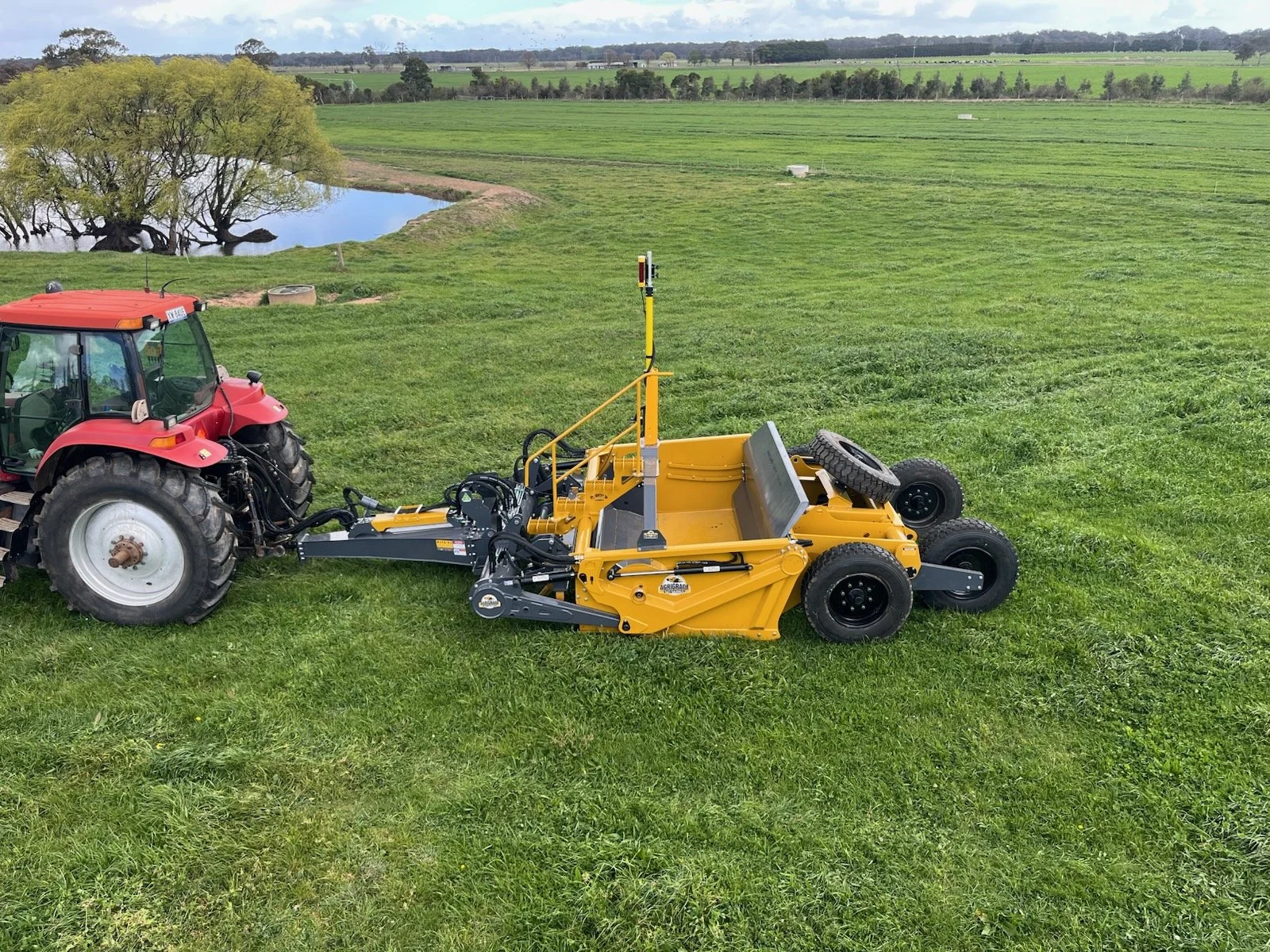

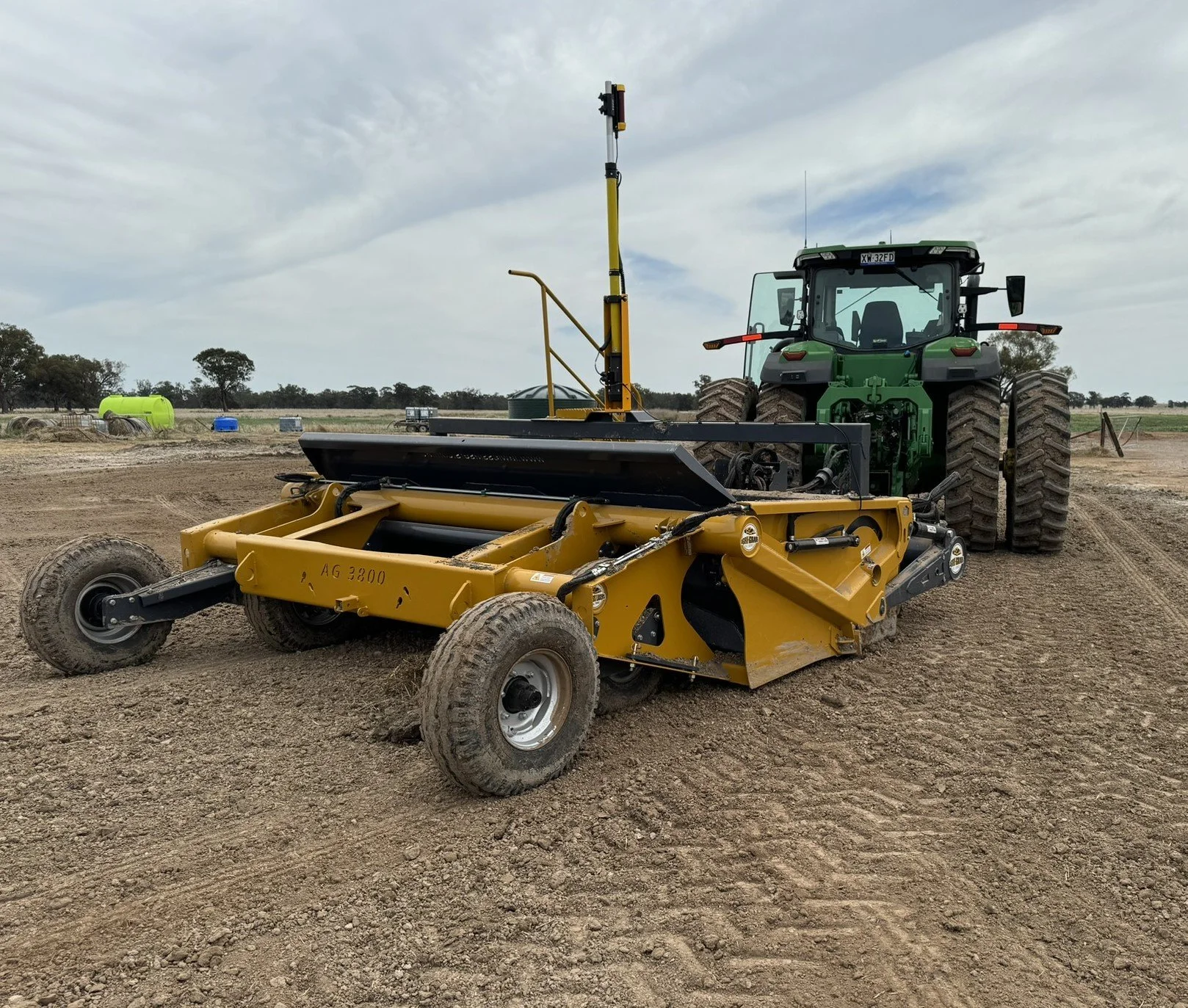

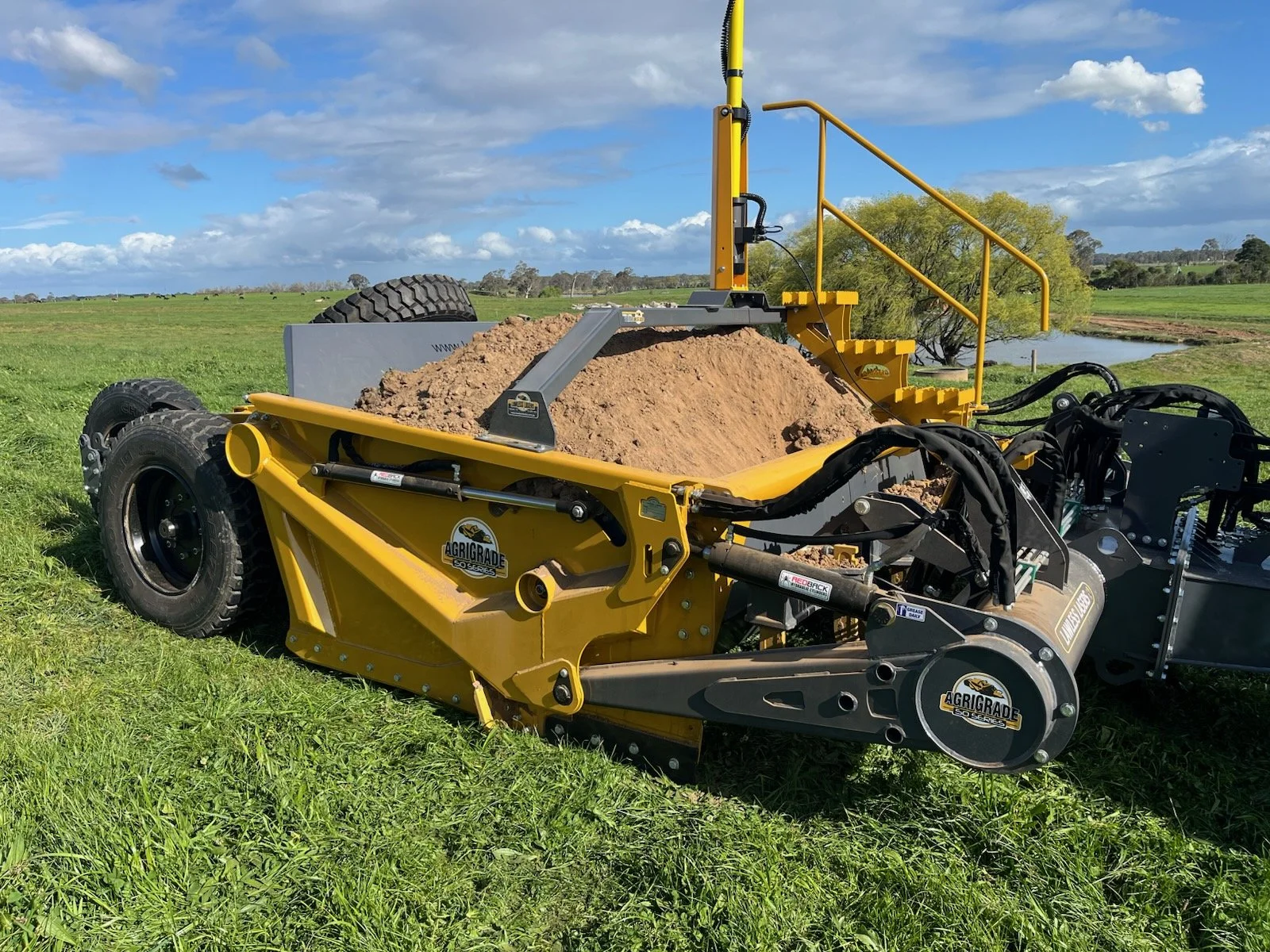

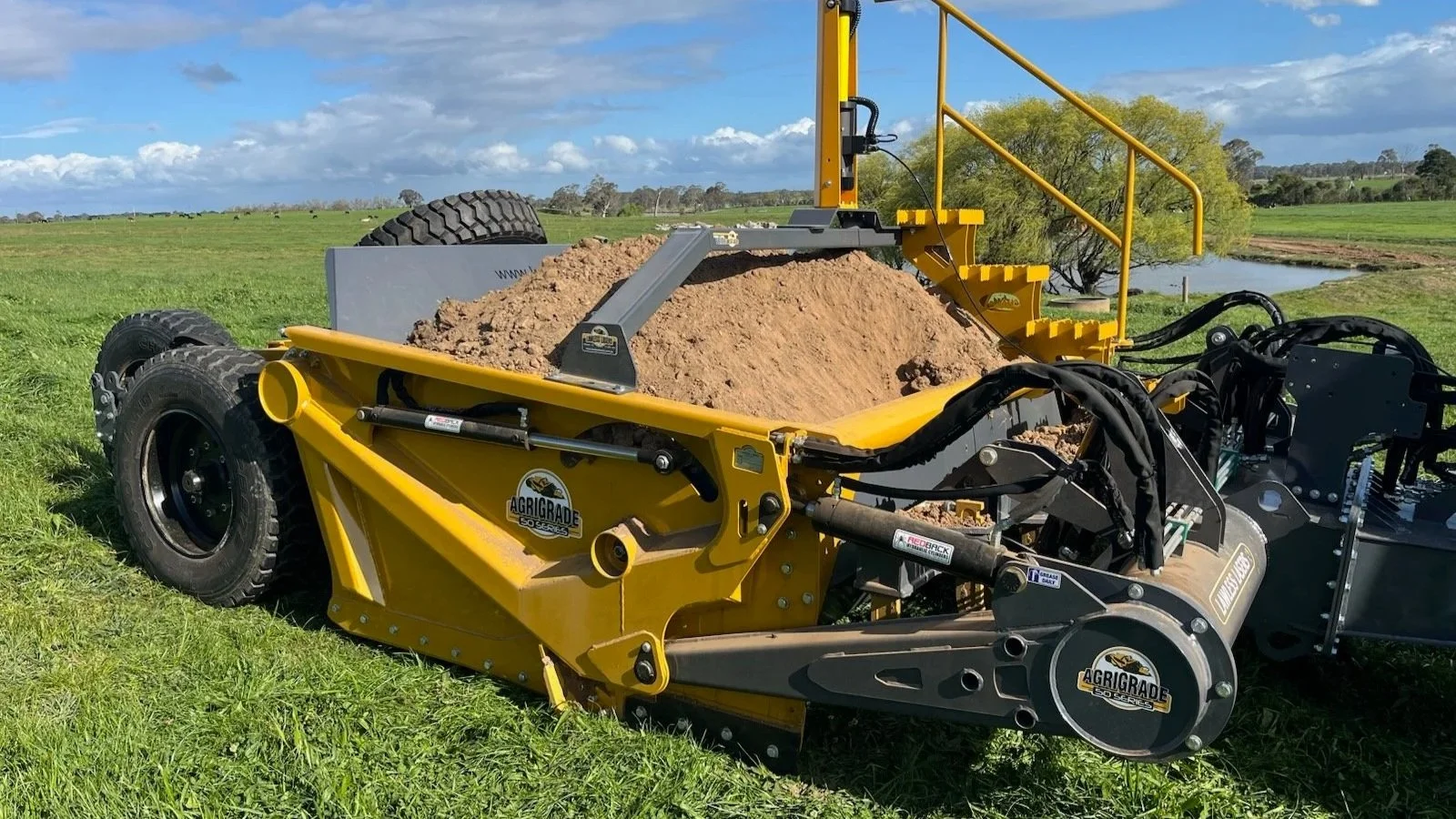

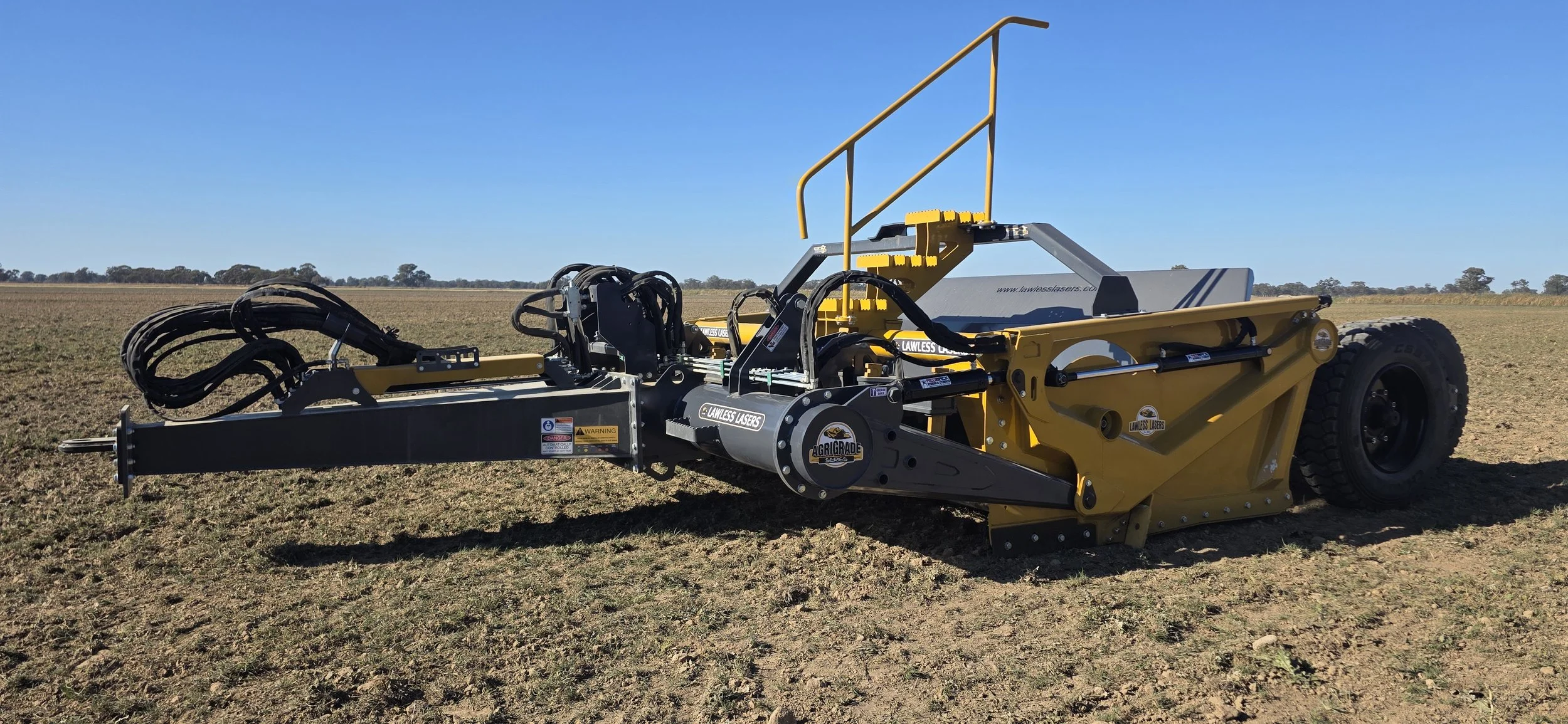

AgriGrade


The flagship model in our range, the AgriGrade is the largest machine we currently produce. It features as standard rocker axles and an ejector system. Combined with a wide range of options, the AgriGrade offers greater personalisation and as a result can accommodate a range of budgets and applications within the agriculture industry.

Features

Rocker Axles
Unique CamTrack Design Ejector
Hose and Cylinder Protection
Integrated Tie-Down Points
50mm Tow Ball at Rear
Mast Hurdle

Options

Apron
   - Increases haul capacity by 100%

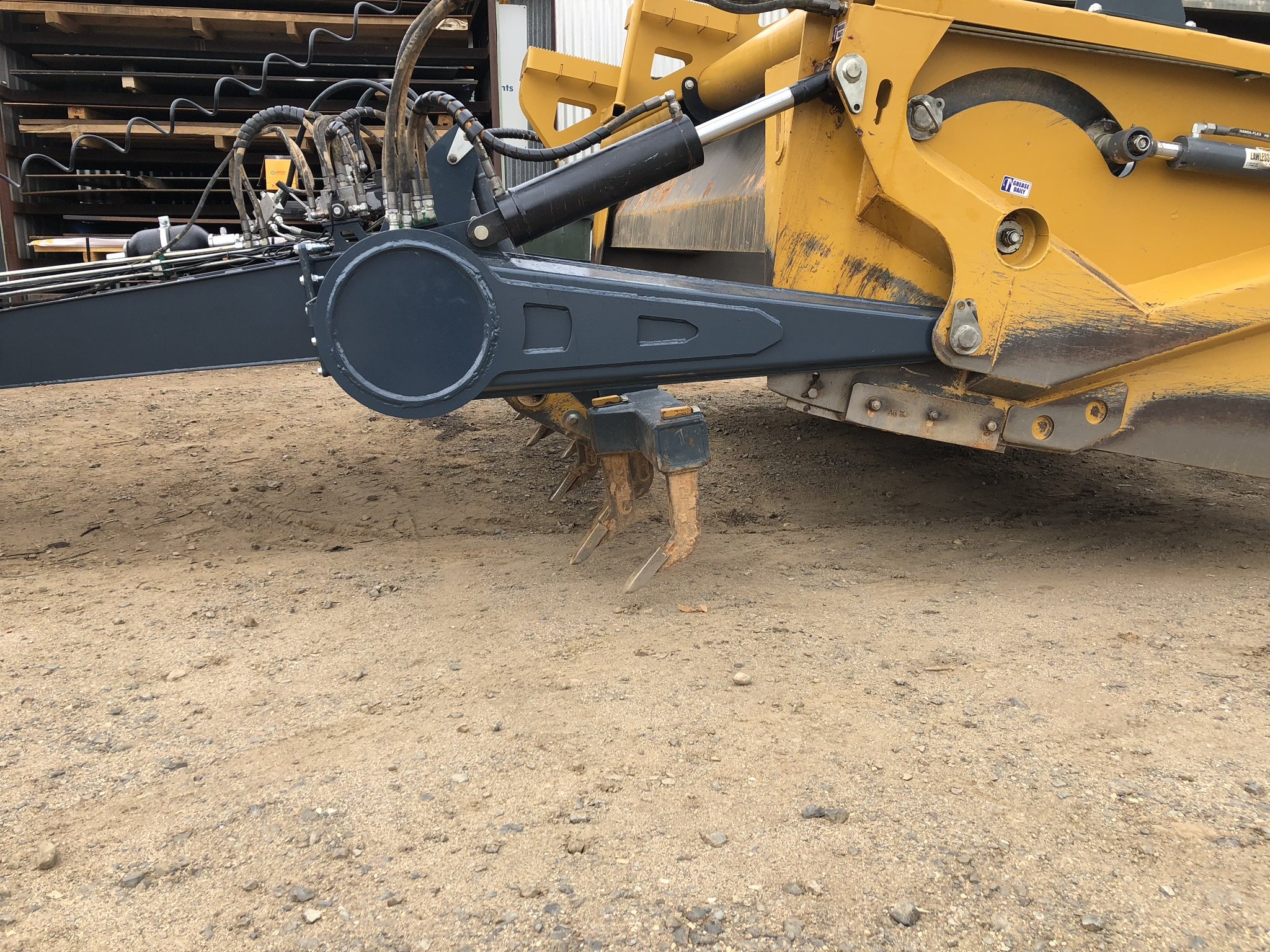

Front Mounted Rippers
   - Offset to reduce trash buildup
Cross Leveler
   - Allows blade to lift +/- 75mm on the right hand side of the machine
Power Mast
   - Enables operator to adjust receiver height from within the cabin
Hydraulic Pump and Tank
   - Independent hydraulic system powered by the tractors PTO
Danfoss™ Valve
   - Proportional hydraulic control valve
Diverter Valve
   - Enables two functions to be run off one tractor remote
Shortened Drawbar
   - 1200mm reduction in drawbar allows for ease of transport and access to confined areas

Machine Specifications

Model AgriGrade2800 AgriGrade3300
Horsepower Range 110 - 180 HP 130 - 210 HP
Dimensions
Machine Width (mm) 2800 3300
Cutting Width (mm) 2540 3050
Length (mm) 7950 7950
Approximate Capacity (m3) 5.2 6.4
Weight (kg) TBC TBC
