EasyGrade

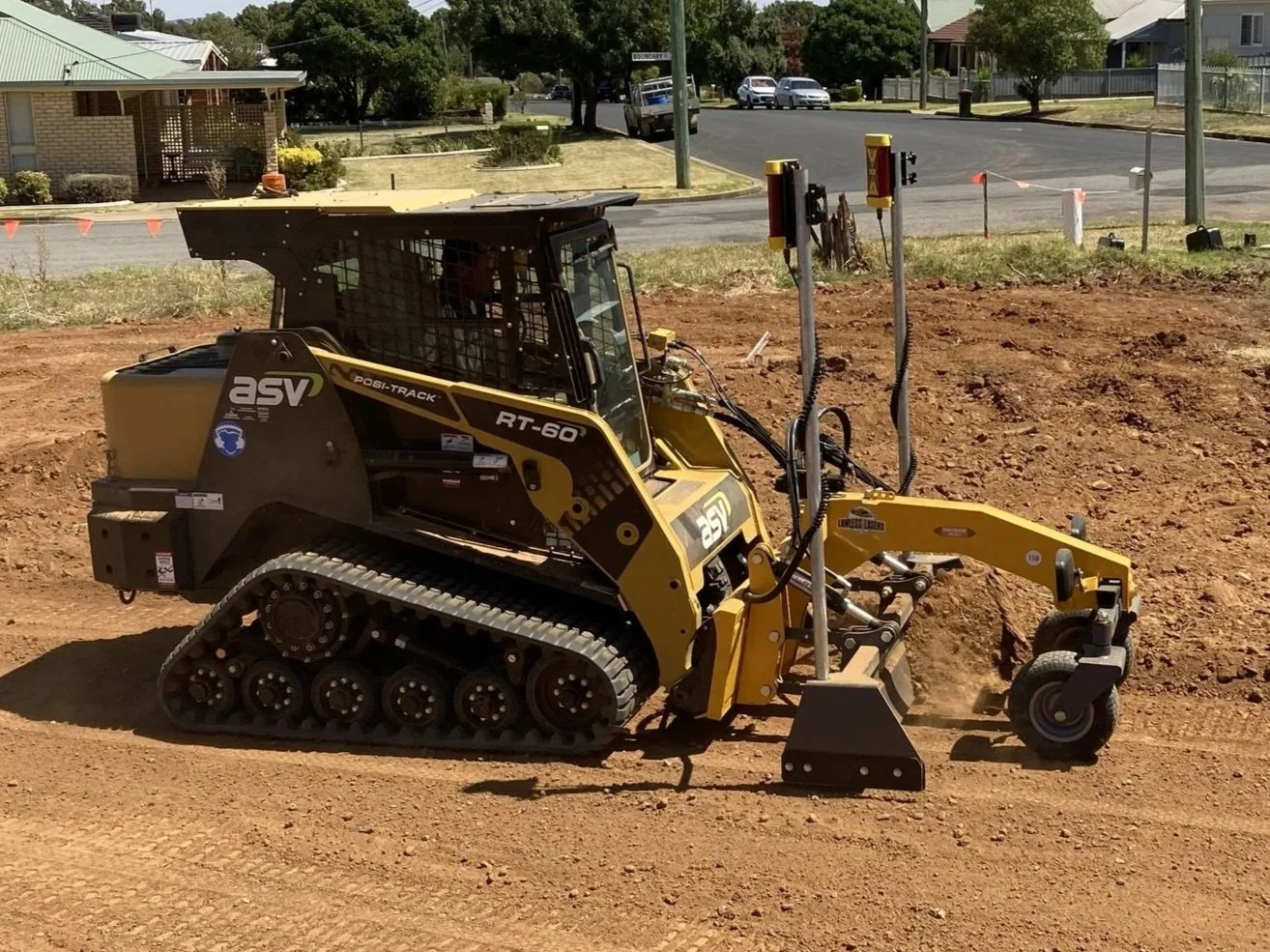

The latest addition to the Lawless Lasers range, the EasyGrade Skid Steer attachment is our answer to the difficulties encountered with the operation of trailing graders in areas with limited space and access. With three models available, the ability for the EasyGrade to attach to any make and size of Skid Steer Loader further adds to its versatility and increases the capabilities of your existing machine.

Features

Dual Danfoss™ Proportional Control Valves
Front and Rear Hinged Blade
Solid Fill Tires
Skid Steer Couplings with Non Return Valve
Stub Axle Castor System
Convex Mirrors
Inner and Outer Wing Wear Plates
Mast Pole Brackets and Removable Pole
Integrated Tie-down and Lifting Points
Leica Junction Box Mounts
Leica Cross Slope Sensor Bracket

Options

Machine Control
   - Leica 2D or 3D GPS Control System

Model EasyGrade1800 EasyGrade2100 EasyGrade2400
Horsepower Range  50 - 80 HP 50 - 100 HP 60 - 100 HP
Dual Grade STD STD STD
Dimensions
Machine Width (mm) 1850 2150 2450
Cutting Width (mm)  1800  2100 2400
Weight (kg) 765 805 845
